H3000 D/SE – Fixing the Photoresistor

[dubmo]

Hi all,

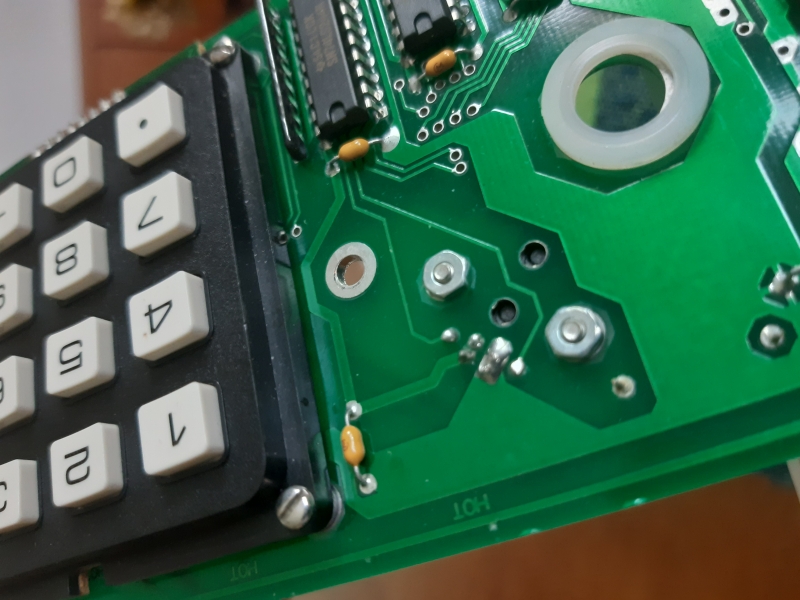

after my Jogwheel goes mad on my H3000 D/SE i ordered a replacement Photo resistor. While disassembling the unit, there is a a double joint soldering on the old photoresistor. I`m unsure if this is intended and if i have to connect those joints together again, or is this a assembly flaw…



Does anyone can confirm that these have to be soldered like this?



[noodle1]

dubmo wrote:

Hi all,

after my Jogwheel goes mad on my H3000 D/SE i ordered a replacement Photo resistor. While disassembling the unit, there is a a double joint soldering on the old photoresistor. I`m unsure if this is intended and if i have to connect those joints together again, or is this a assembly flaw…

Does anyone can confirm that these have to be soldered like this?



Wrong forum, but regardless they don’t seem to offer support for H3000 anymore, except for a few authorized repair guys. See the list.

Not an H3000 expert myself but this old tech note may help you:

“Fixing the H3000 knob (optical encoder)”

http://www.eventidier.com/technote/techn101.htm
