Beyond the Effect Horizon
Discover why top artists and producers have chosen Eventide for over 50 years with the H90 Harmonizer®, Eventide’s next-generation multi-effects pedal. Whether you want high-quality bread-and-butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind, 66 effect algorithms, and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.
New Technology, New Effects
The H90 Harmonizer features modern ARM-based architecture derived from the world’s most powerful effects processor, Eventide’s flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch-shifting effects of the H9 Max but goes far beyond with eleven new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide’s proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long-imagined and unimaginable.
Polyphony
Pitch shift chords with ease using SIFT technology. Create rising or sinking chorus and crystals-type effects. Use Freeze to generate pad textures.
Prism Shift
Generate three voices from a single chord whose intervals are separated, staggered, and pitch-shifted to create four arpeggio types spanning up to three octaves.
Even-Vibe
Authentic Uni-Vibe emulation reimagined in stereo with envelope followers.
Head Space
Vintage four-head Tape Delay with classic and modern creative tone shaping controls for grit, spatiality, and character.
Bouquet Delay
Bucket Brigade Delay (BBD) with modulation, LoFi, and Modern flavors; includes Pitch jump and Self-oscillation performance functions.
PolyFlex
Chord-bending pitch shifter allows you to perform polyphonic dive bombs or transform your guitar into a pedal steel.
Aggravate
Aggravate is an octave fuzz inspired by famous classic analog octave fuzzes from the 70’s. Satisfy all your fuzz needs with its versatile controls, rich feature set and most importantly, its chewy tone that makes playing through it addicting!
Wormhole
A mega-sized hyper-modulated reverb with pitch warping performance.
WeedWacker
Two-stage, serial overdrive reminiscent of a famous green pedal.
SP2016 Reverb
The legendary Room, Stereo Room, and Hi-density plate from the original studio rackmount.
Instant Phaser
Authentic emulation of the world’s first studio Phaser from 1971 notably used in Led Zeppelin’s Kashmir.
Instant Flanger
Authentic emulation of the world’s first studio Flanger heard on countless hit records.
PolySynth
PolySynth transforms your guitar into a synthesizer with three independent voices, each with controls for level, shift amount, and wave shape.
Sticky Tape
Sticky Tape is a new tape algorithm based on the same emulation technology as Head Space. It opens up a world of tape tone possibilities – all the character, grit, and modulation of those classic reel-to-reel tape machines without the bother.
That’s not all. The upgraded DSP power of the H90 enhances the performance of all previous H9 Max algorithms. We’ve also developed new features and enhancements, such as quantization and improved pitch tracking, as well as additional features previously only available on the dot9 pedals and plug-ins.
Twin-Turbo Program Power
Two of these already impressive algorithms can be combined into a Program to create novel, inspiring sounds. The H90 Harmonizer’s dual algorithm design features true spillover between Programs, series or parallel effect routing, and flexible I/O.
Two Mono Inserts
Two mono inserts allow you to incorporate outboard effects in any configuration or combine them for one stereo insert. Optimize your signal flow with instrument or line level operation and full gain controls to incorporate the H90 into your rig or make it the centerpiece.
Dual Mode
Dual Mode lets you do things like connect using the four-cable method or process two independent stereo instruments at once! Let the H90 Harmonizer take you beyond the effects horizon.
Essential Tones
Factory Programs
The H90 Harmonizer comes with hundreds of factory Programs that can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of three Programs, perfect for cueing up the range of sounds for a song. Organizing your favorite sounds has never been easier, simply load a new Playlist and you’re ready for the next gig!
Essential Tones
Clean Ambient
Funky Wah
Green Tides
Instant Flavor
Recital Hall
Riff Rocket
Shoegazer
Slap Drive
Space Spiral
Wide & Clean
Creative Soundscapes
Awaken
80s Villain
Dream Sequence
Emin Dance
Jazzy BZ
Mosaic
Polyphonic Room
Space Island
Tidal Waves
Transcend
Powerful Synth Programs
Live Performance Machine

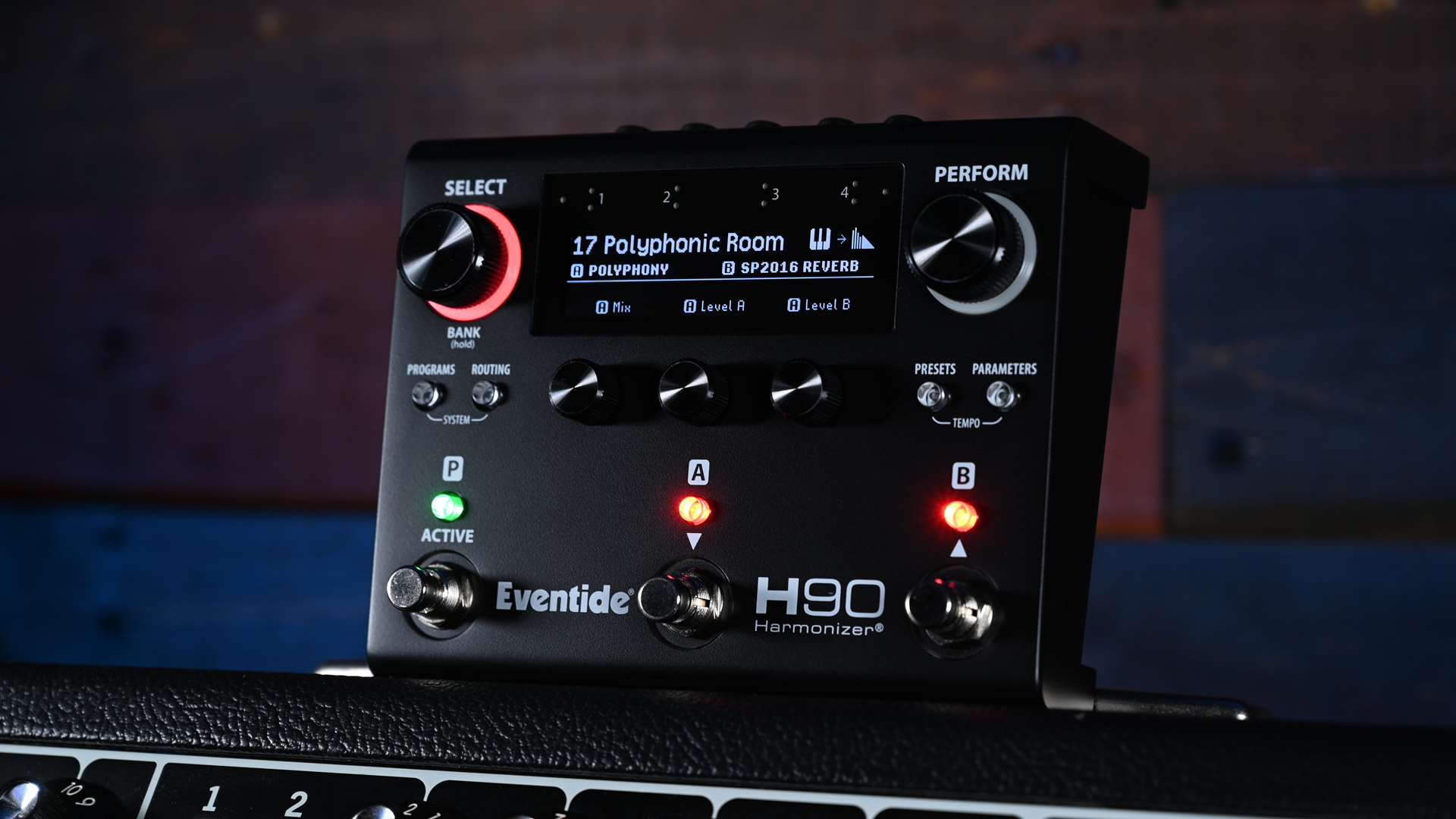

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback.
In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset and insert bypass with momentary states, and performance parameters like reverb freeze, pitch flex, or delay repeat. Furthermore, you can make multiple instantaneous parameter changes with three HotSwitches.
Comprehensive UI
The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that’s not enough, take advantage of the pedal’s extensive MIDI control.
Flexible Routing Options
Simple Effects Pedal Setup
Two Mono Inserts
One Stereo Insert
Amplifier Pre/Post (Mono)
Dual Mode
Guitar & Vocals (with MixingLink®)
Dual Mode
Dual Inserts in DAW
Dual Mode
Features
- Preloaded with 66 effect algorithms:
- 14 new effect algorithms: Polyphony, Prism Shift, PolyFlex, PolySynth, Bouquet Delay, Head Space, WeedWacker, Even-Vibe, Wormhole, Instant Flanger, Instant Phaser, Aggravate, Sticky Tape and SP2016 Reverb
- Includes all 52 effect algorithms from the H9 Max Harmonizer with enhanced features and improvements
- New low-latency Polyphonic Pitch Shifting with SIFT (Spectral Instantaneous Frequency Tracking) technology
- ARM-based architecture lays the foundation for new and exciting creative effects
- Use two algorithms at once per Program
- True spillover between Programs
- Route effects in series or parallel
- Instrument or line-level operation
- Two mono inserts or one stereo insert can be positioned anywhere in the signal chain
- Dual-mode for processing two independent stereo signals at once
- Five push-turn knobs for more tactile control
- Two expression inputs for pedals, up to 3-button auxiliary switches, and CV signals
- Use H90 Control software on iPad, Mac or PC to edit Programs and create lists. (Update firmware using a Mac or PC only).
- Built-in tuner
H90 Control
H90 Control provides remote control access and Program list management for the H90. Manage Program and Preset settings, perform system updates, and import/export User Lists with an easy-to-use interface.
Register your H90 pedal to your User Account to download H90 Control for Mac or Windows.
News & Reviews
H90 Harmonizer named product of the week by Mix Magazine.
“To have this unit in your arsenal is genuinely a reward.”
“It’s a game-changer. I can do more with less.”
H90 Harmonizer is showcased in Premier Guitar’s “Gear Radar” column.
“The H90 Harmonizer® does about a million other things very, very well.”
“The H90 succeeds in bringing the H9’s brilliance into the modern effects era.”
“The H90 is a next-generation multi-effects powerhouse for all manner of different musicians.”
Specifications
Inputs 1 – 4
¼ inch TS mono jack
Outputs 1-4
¼ inch TS mono jack
Exp/Ctl 1-2
¼ inch TRS / Expression pedal or Aux Switch
USB Type-C
Use USB 2.0 for control, updates, and MIDI
MIDI In
Five-pin DIN (Female)
MIDI Out/Thru
Five-pin DIN (Female)
DC Input Jack
5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level)
>600k ohms
Input Impedance (Line Level)
>80k ohms
Output Impedance
220 ohms
Recommended Load Impedance
10k ohms
Maximum Input Level (Inst)
+4dBu
Maximum Input Level (Line)
+14dBu
Power
12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack
Dimensions (Product)
English: 6.5″ (W) x 5.25″ (D) x 2.5″ (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm
Dimensions (Package)
English: 10.5″ (W) x 7″ (D) x 3″ (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product)
1.85 lbs / 0.84 kg
Weight (Package)
3 lbs / 1.36 kg
Shipping Contents
H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide
