Available as a Standalone Unit
or PowerMax Expansion

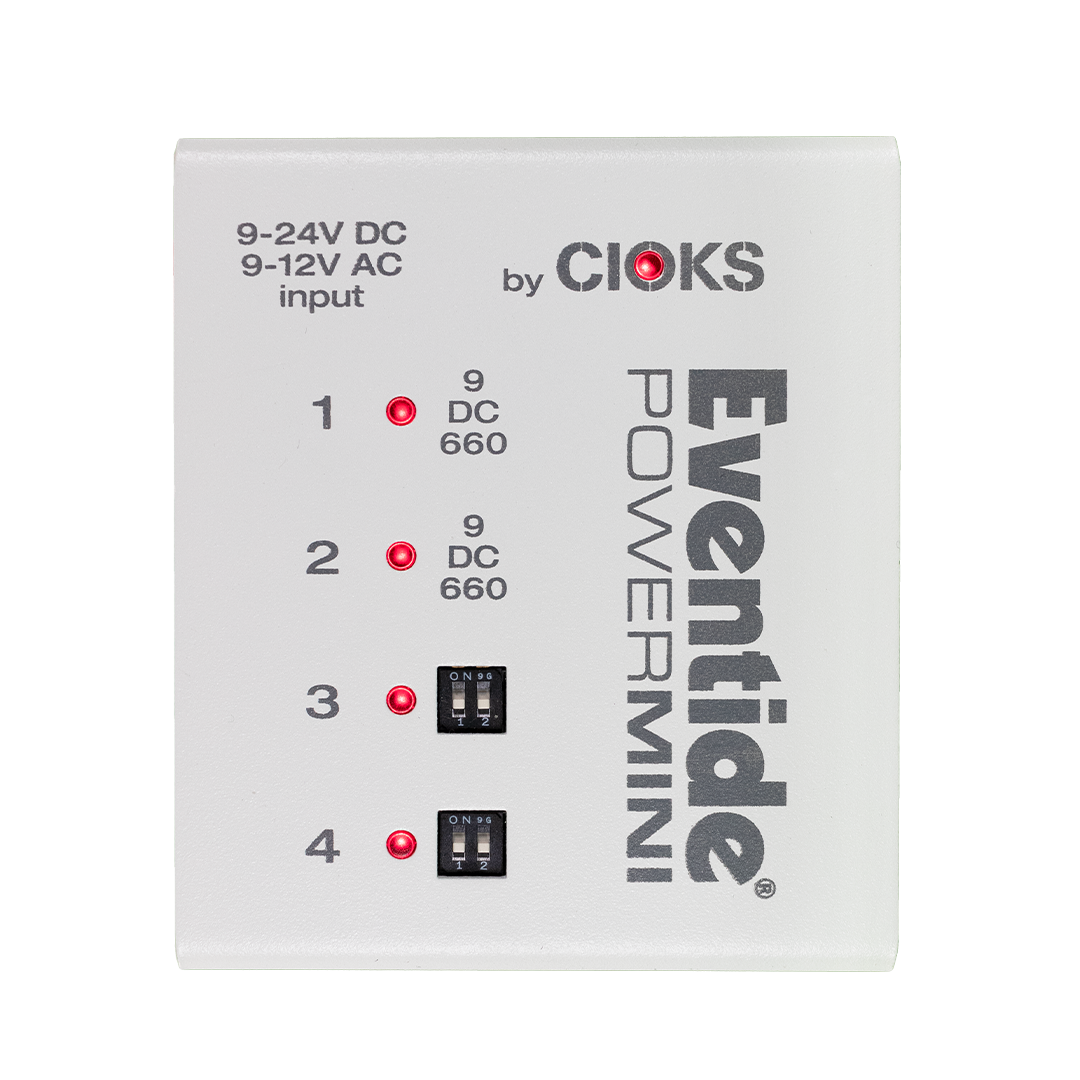

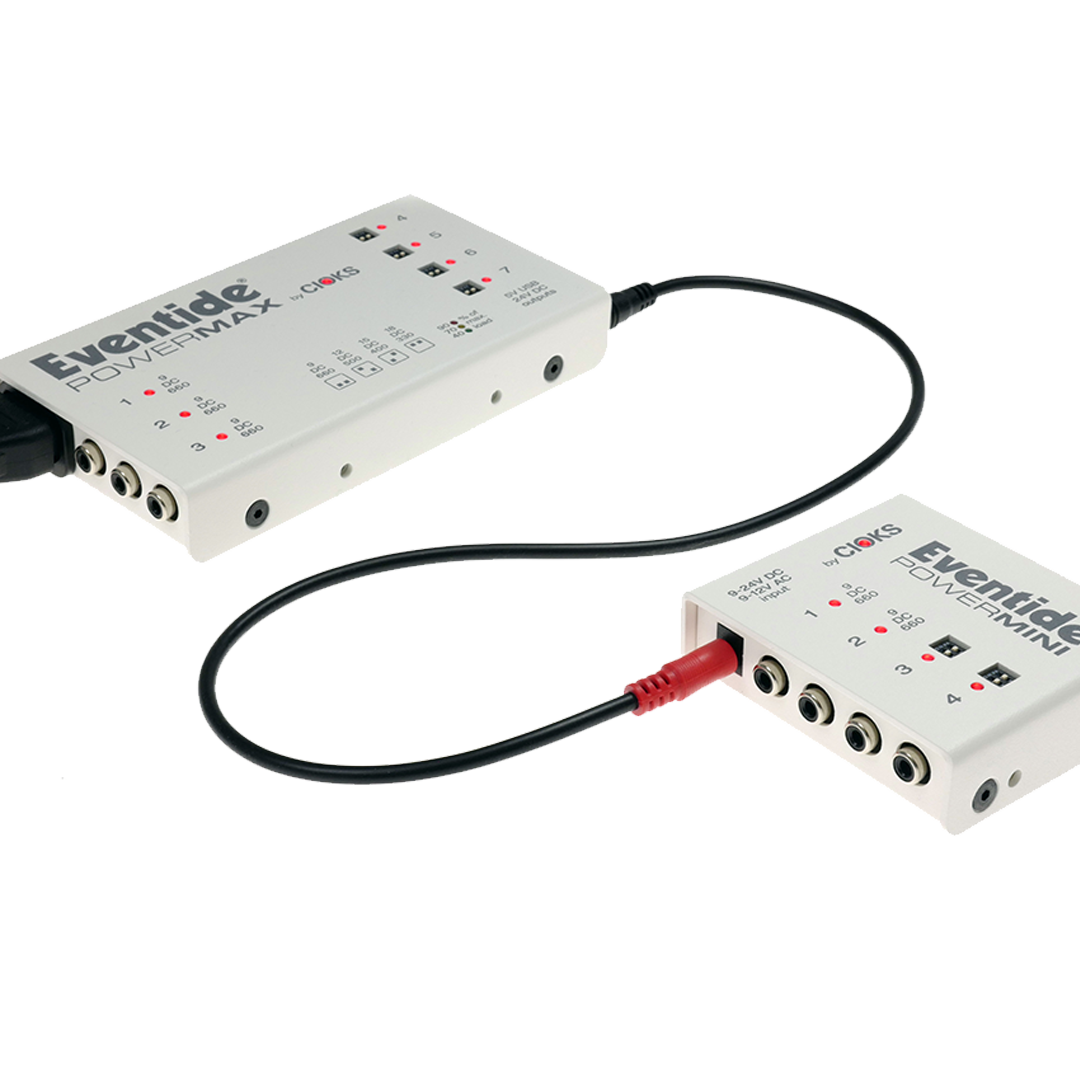

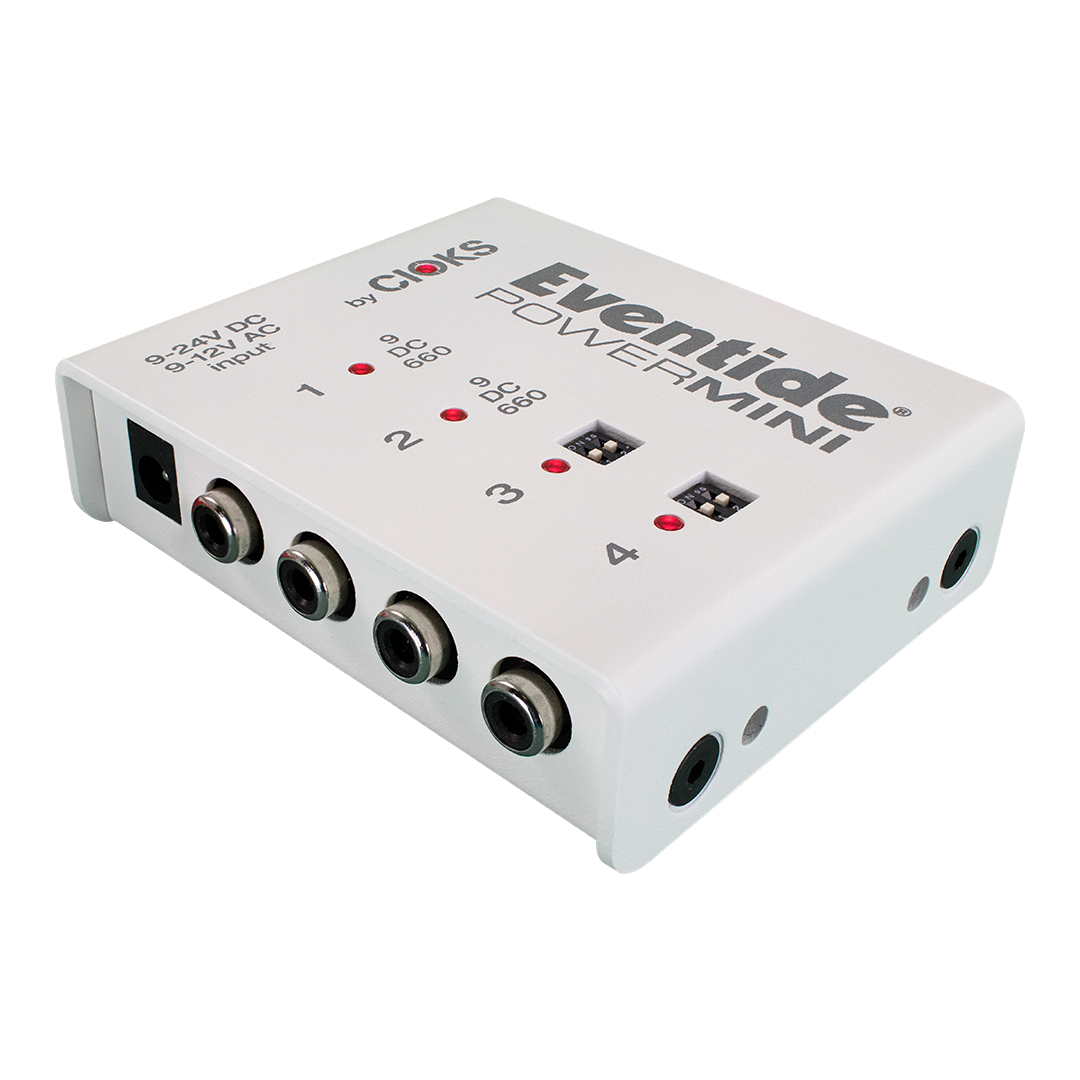

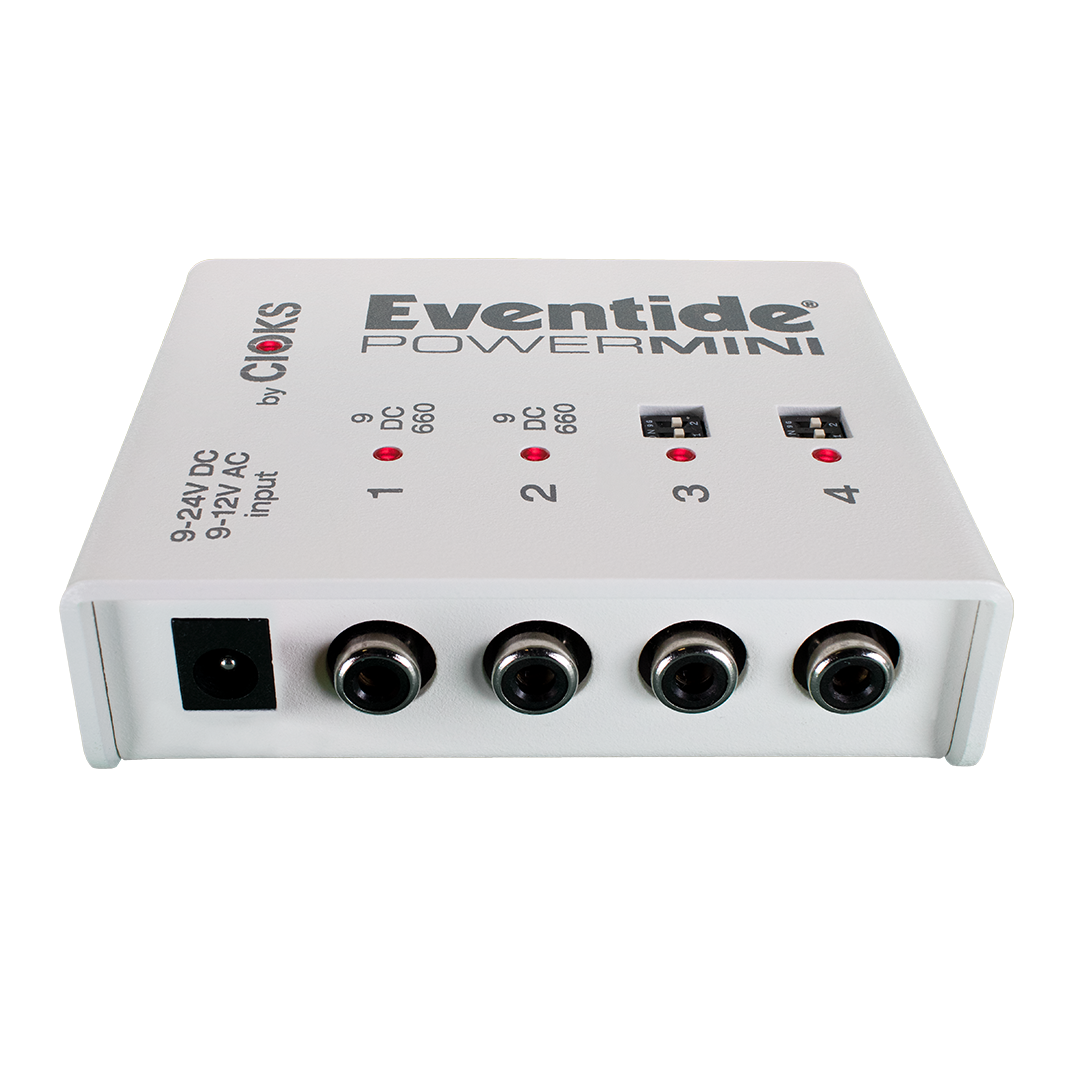

PowerMini is a super-compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity. PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15, or 18V). Also available is the PowerMini EXP, which is the perfect companion to PowerMax. Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go. Each PowerMini comes with 7 flex cables compatible with most pedal brands.
Features
PowerMini Standalone
- 18VDC, up to 2A, Center Pin Positive (+), 5.5/2.1mm plug
- Mounting hardware (2 screws and a hex-key)
- Product sheet (drill guide)
- Flex & DC Link cable guide
- 7 Flex Cables:
- 2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
- 2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
- 2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
- 1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
PowerMini EXP (PowerMax Expansion)
- Comes with 24V DC Link cable, black, 50cm (EIAJ to red 5.5/2.1mm center positive DC plug)
- Mounting hardware (2 screws and a hex-key)
- Product sheet (drill guide)
- Flex & DC Link cable guide
- 7 Flex Cables:
- 2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
- 2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
- 2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
- 1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)
Specifications
Mains input
9-24V DC, 9-12V AC
Outlets 1–2
9V DC / 660mA
Outlets 3–4
9, 12, 15, 18V DC / 660mA
Size
2.9” x 3.5” x 1.0”
Weight
0.507 lbs / 220.9g
Warranty
5 years worldwide
Buy Now For $129
